Introduction

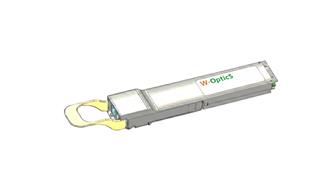

This product is an 1600Gb/s Octal Small Form-factor Pluggable (OSFP) optical module with top closed fin designed for 500m optical communication applications. The module converts 8 channels of 200Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals via integrated silicon photonics optical path, each capable of 200Gb/s operation for an aggregate data rate of 1600Gb/s. Reversely, on the receiver side, the module converts 8 channels of parallel optical signals of 200Gb/s each channel for an aggregate data rate of 1600Gb/s into 8 channels of 200Gb/s (PAM4) electrical output data.
An optical fiber cable with dual MPO-12 connector can be plugged into the OSFP 2x DR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an OSFP MSA-compliant edge type connector.
I2C interface is supported to read and control the status of this product.
Applications
- ￭ Data Center
- ￭ High Speed Communication System
- ￭ InfiniBand Interconnect
- ￭ Enterprise Networking
Standards
- ￭ OSFP MSA
- ￭ CMIS Compliance
- ￭ 8 x 200 Gb/s PAM4
