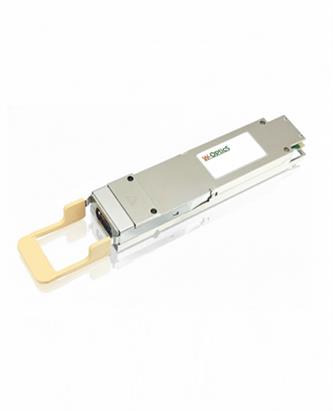

800G OSFP SR8

800G OSFP SR8

Features
  • ￭ Compliant to OSFP MSA
  • ￭ Dual MTP/MPO-12 APC Connector
  • ￭ 8 Channel PIN PD Array and 8 Channel 850 nm VCSEL Array
  • ￭ 25Gb/s Electrical Interface Compliant
  • ￭ Maximum Link Length of 100m on OM4 Multimode Fiber (MMF) with FEC
  • ￭ Power Consumption < 14 W
  • ￭ Operating Case Temperature 0°C to 70°C
  • ￭ 3 V Power Supply Voltage
  • ￭ RoHS Compliant
  • ￭ Supports Digital Diagnostic Function
Applications
  • ￭ Data Center
  • ￭ 800G Ethernet High Speed Communication System
  • ￭ InfiniBand Interconnect
  • ￭ Enterprise Networking



Standards
  • ￭ OSFP MSA
  • ￭ CMIS 5.2 or Later Version
  • ￭ Compliant with IEEE 802.3ck
  • ￭ Compliant with IEEE 802.3db


附件下載:



Size Chart



          ..............................
