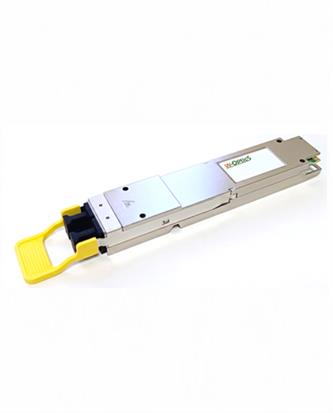

800G OSFP DR8

800G OSFP DR8

Features
  • ￭ Compliant to OSFP MSA Type2
  • ￭ Dual MPO-12 APC Connector Receptacle
  • ￭ 25Gbps (PAM4) Electrical Interface, 8 x 106.25Gbps (PAM4) Optical Interface
  • ￭ 8 Parallel EML 1310nm Optical Lanes
  • ￭ Compliant with 2x400G-DR4 Optical Specifications
  • ￭ Transmission Distance up to 500 meters over SMF with FEC
  • ￭ Power Dissipation < 16.5 W
  • ￭ Operating Case Temperature 0°C to 70°C
  • ￭ 3 V Power Supply Voltage
  • ￭ RoHS Compliant
  • ￭ Supports Digital Diagnostic Function
Applications
  • ￭ Data Center
  • ￭ High Speed Communication System
  • ￭ InfiniBand Interconnect
  • ￭ Enterprise Networking



Standards
  • ￭ OSFP MSA
  • ￭ CMIS 5.2
  • ￭ 2 x 400 GBASE-DR4
  • ￭ Compliant with IEEE 802.3cu-2021
  • ￭ Compliant with IEEE 802.3ck
附件下載:



Size Chart



          ..............................
