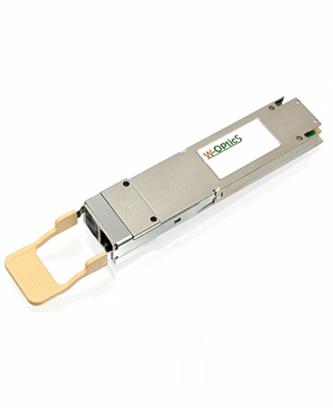

400G OSFP-RHS SR4

400G OSFP-RHS SR4

Features
  • ￭ Compliant to OSFP-RHS MSA
  • ￭ MTP/MPO-12 APC Connector
  • ￭ 4 Channel PIN PD Array and 4 Channel 850 nm VCSEL Array
  • ￭ 4x 25Gb/s Electrical Interface Compliant
  • ￭ Maximum Link Length of 100m on OM4 Multimode Fiber (MMF) with FEC
  • ￭ Power Consumption < 9 W
  • ￭ Operating Case Temperature 0 °C to 70 °C
  • ￭ 3 V Power Supply Voltage
  • ￭ RoHS Compliant
  • ￭ Supports Digital Diagnostic Function
Applications
  • ￭ 400G Ethernet High Speed Communication System
  • ￭ InfiniBand Interconnect
  • ￭ Enterprise Networking
Standards
  • ￭ OSFP MSA
  • ￭ CMIS 5.2 or later Version
  • ￭ Compliant with IEEE 802.3ck
  • ￭ Compliant with IEEE 802.3db
附件下載:



Size Chart



          ..............................
