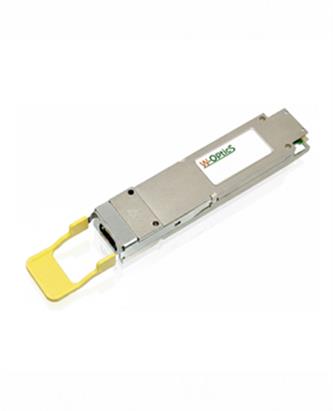

400G OSFP DR4

400G OSFP DR4

Features

  • ￭ Compliant to OSFP MSA Type1
  • ￭ MPO-12 APC Connector Receptacle
  • ￭ 8*53.125Gbps (PAM4) Electrical Interface, 4*106.25Gbps (PAM4)  Optical Interface
  • ￭ 4 Parallel EML 1310nm Optical Lanes
  • ￭ Compliant with 400G-DR4 Optical Specifications
  • ￭ Transmission Distance up to 500 meters over SMF with FEC
  • ￭ Power Dissipation < 10 W
  • ￭ Operating Case Temperature 0 °C to 70 °C
  • ￭ 3 V Power Supply Voltage
  • ￭ RoHS Compliant
  • ￭ Supports Digital Diagnostic Function

Applications

  • ￭ Data Center
  • ￭ High Speed Communication System
  • ￭ InfiniBand Interconnect
  • ￭ Enterprise Networking



Standards

  • ￭ OSFP MSA
  • ￭ CMIS 5.2
  • ￭ 400GAUI-8
  • ￭ IEEE 802.3bs 400GBASE-DR4
