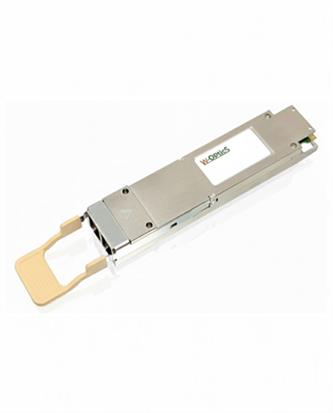

400G QSFP-DD SR8

400G QSFP-DD SR8

Features
  • ￭ Hot Pluggable QSFP DD Form Factor and Compliant with CMIS
  • ￭ MPO-16 APC Connector Receptacle
  • ￭ 8 Channel PIN PD Array and 8 Channel 850nm VCSEL
  • ￭ 125Gbps PAM4 Transmitter and PAM4 Receiver
  • ￭ Maximum Link Length of 70m on OM3 and 100m on OM4
  • ￭ Low Power Dissipation < 10 W
  • ￭ Operating Case Temperature 0 °C to 70 °C
  • ￭ 3V Power Supply Voltage
  • ￭ RoHS Compliant
  • ￭ Supports Digital Diagnostic Function

Applications
  • ￭ 400GBASE-SR8 400G Ethernet
  • ￭ Data Center



Standards
  • ￭ QSFP-DD MSA
  • ￭ Compliant with IEEE 802.3cd
