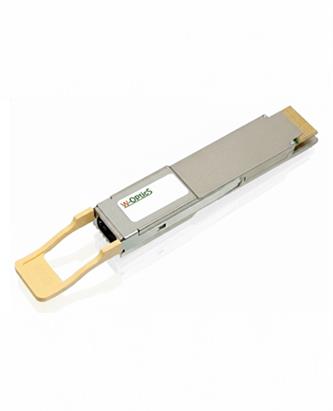

400G QSFP-DD SR4

400G QSFP-DD SR4

Features
  • ￭ Compliant to QSFP-DD MSA
  • ￭ MTP/MPO-12 Connector
  • ￭ Four-Channel Full-Duplex Optical
  • ￭ 4 Channel PIN PD Array and 4 Channel 850nmVCSEL
  • ￭ 125Gb/s Electrical Interface (400GAUI-8) Compliant
  • ￭ Transmission Distance up to 100 meters over MMF OM4/OM5
  • ￭ Low Power Dissipation
  • ￭ Operating Case Temperature 0 °C to 70 °C
  • ￭ 3 V Power Supply Voltage
  • ￭ RoHS Compliant
  • ￭ Supports Digital Diagnostic Function

Applications
  • ￭ Data Center
  • ￭ 400G Ethernet High Speed Communication System
  • ￭ InfiniBand Interconnect
  • ￭ Enterprise Networking



Standards
  • ￭ QSFP-DD MSA
  • ￭ CMIS 4.0
  • ￭ Compliant with IEEE 802.3db
  • ￭ Compliant with IEEE 802.3bs
Download:



Size Chart



          ..............................
