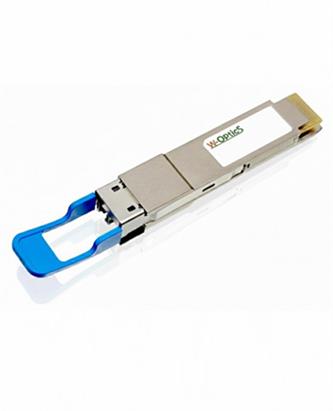

400G QSFP-DD LR4

400G QSFP-DD LR4

Features

  • ￭ Hot-Pluggable QSFP-DD MSA Form Factor
  • ￭ Transmission Data Rate up to 425 Gb/s
  • ￭ 4 CWDM lane MUX/DEMUX Design
  • ￭ 125Gb/s Electrical Interface (400GAUI-8)
  • ￭ 400 Gb/s PAM4 Transmitter and PAM4 Receiver
  • ￭ Up to 10 km Reach for 652 SMF with FEC
  • ￭ Single +3.3 V Power Supply
  • ￭ Power Dissipation < 12 W
  • ￭ Duplex LC Receptacle
  • ￭ Digital Diagnostics Function Available via the I2C Interface
  • ￭ Case Temperature Range: Commercial, 0 °C to 70 °C

Applications

  • ￭ 400 GBASE-LR4 Ethernet
  • ￭ IEEE 3bs 400GBASE-LR4
  • ￭ Data Center Interconnect
  • ￭ InfiniBand Interconnect
  • ￭ Enterprise Networking



Standards

  • ￭ Compliant with IEEE 802.3bs
  • ￭ RoHS Compliant
  • ￭ Compliant with CMIS 4.0
