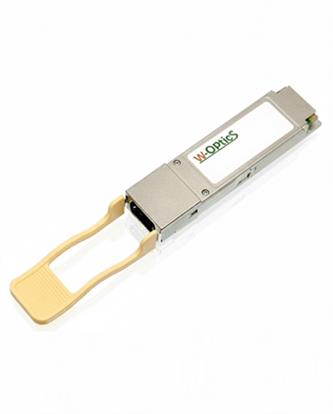

400G QSFP112 SR4

400G QSFP112 SR4

Features
  • ￭ Data Rate 25 Gbs (PAM4) per Channel
  • ￭ Hot Pluggable QSFP112 Form Factor
  • ￭ MPO-12 APC Connector
  • ￭ 4 Channel PIN PD Array and 4 Channel VCSEL Array
  • ￭ Maximum Link Length of 60m on OM3 and 100m on OM4/OM5(MMF)
  • ￭ Low Power Consumption < 10W
  • ￭ Operating Case Temperature 0 °C to 70 °C
  • ￭ 3 V Power Supply Voltage
  • ￭ RoHS Compliant
  • ￭ Supports Digital Diagnostic Function

Applications
  • ￭ 400 GBASE-SR4 Ethernet
  • ￭ Switch & Router Connections
  • ￭ Other 400G Interconnect Requirements
  • ￭ Data Center
  • ￭ High Speed Communication Systems

Standards
  • ￭ QSFP112 MSA
  • ￭ CMIS V5.0
  • ￭ Compliant with IEEE 802.3ck
  • ￭ Compliant with IEEE 802.3db 400GBASE-SR4 Ethernet (PAM4)
