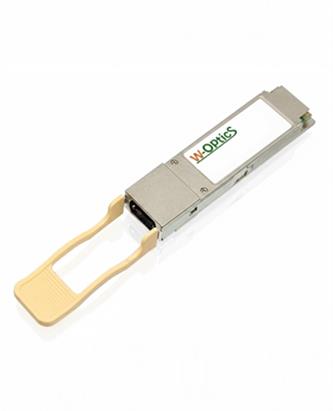

200G QSFP56 SR4

200G QSFP56 SR4

Features
  • ￭ QSFP56 form factor
  • ￭ MPO connector receptacle
  • ￭ Four-channel Full-duplex
  • ￭ 4 channel PIN PD array and 4 channel VCSEL LD array
  • ￭ Latest low power CDR
  • ￭ Transmission data rate up to 9 GBd per channel
  • ￭ Supports 25 G NRZ signal by internal FW setting change
  • ￭ Distance Up to 70 m on OM3 MMF and 100 m on OM4& OM5 MMF
  • ￭ Low power consumption < 5 W
  • ￭ Operating case temperature, 0° C to 70° C
  • ￭ 3 V power supply voltage
  • ￭ RoHS compliant
  • ￭ Built-in digital diagnostic function

Applications
  • ￭ High speed communication systems
  • ￭ Data Center



Standards
  • ￭ QSFP MSA
  • ￭ SFF-8665
  • ￭ SFF-8636
  • ￭ 200GAUI-4
  • ￭ Compliant with IEEE 802.3cd 200GBASE-SR4
