Description

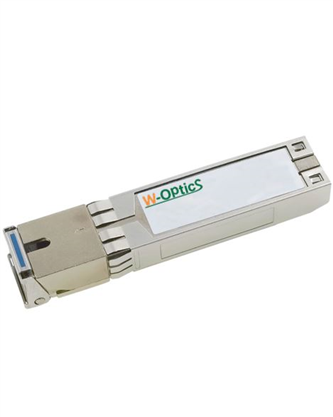

The series of transceivers comply withSmall Form Factor Pluggable (SFP). It is designed for single-mode fiber application with high performance and cost-effective. Each module consists of the high-speed laser diode and avalanche photo diode as a light source and a detector. An EEPROM containing the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with the laser class 1 products.
Table for GPON OLT Product
| Product |
Model Name |
Data Rate
(Gbit/s) |
Class |
TX |
RX |
Optical Power
(dBm) |
Sensitivity
(dBm) |
Operating Temperature |
| GPON OLT |
S8R-xx41-713 |
2.5/1.25 |
B+/C+/C++/C+++ |
1490nm
|
1310nm
|
+1.5 ~ +5.0
+3.0 ~ +7.0
+4.5 ~ +10.0
+7.0 ~ +11.0
|
-28
-30
-31
-32
|
0 ~ +70C
-40 ~ +85C
|
