Description

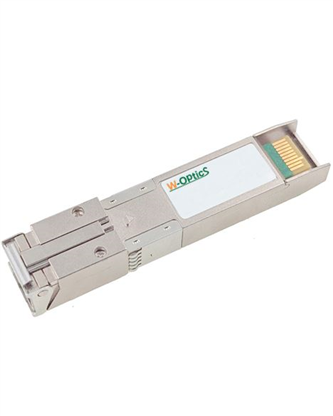

The series of transceivers comply with Enhanced Small Form Factor Pluggable (SFP+). It is designed for single-mode fiber application with high performance and cost-effective. Each module consists of the high-speed EML or DFB laser diode and avalanche photo diode as a light source and a detector. An EEPROM containing the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with the laser class 1 products and EN60825-2.
Table for Combo XGSPON/GPON OLT Product
| Product |
Model Name |
Data Rate
(Gbit/s) |
Class |
TX |
RX |
Optical Power
(dBm) |
Sensitivity
(dBm) |
Operating Temperature |
| Combo XGSPON/GPON |
SW1-xx41-713 |
10, 2.5/10,2.5 |
N1/N2 |
1577nm
1490nm
|
1270nm
1310nm
|
+2 ~ +5
+4 ~ +7
|
-28
-28
|
-5 ~ +70C
-40 ~ +85C
|
| |
