Description

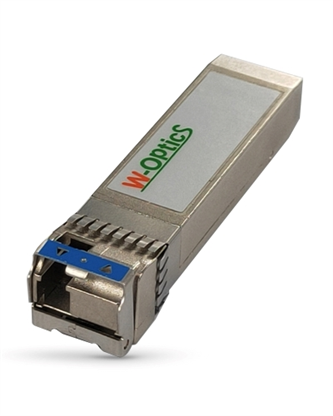

This transceiver complies with Small Form Factor Pluggable (SFP) connector to allow hot plug application. It is a simplex SFP designed to transmit one channel of optical signal in ST 2082-1 (12G-SDI), ST 2081-1 (6G-SDI), ST 424M (3G-SDI),ST292M (HD-SDI), ST 259M (SD-SDI)through one optical fiber. The module is equipped with a single high-speed laser diode provided as light source. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with Class 1 laser products and EN60825-1.
