Description

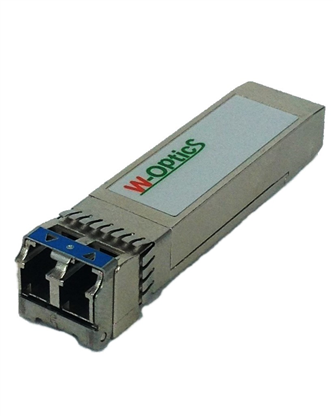

The series of transceivers comply with Small Form Factor Pluggable (SFP) MSA.
It is designed for SM or MM fiber application with high performance and costeffective.
Each module consists of the high-speed laser diode and photo diode as a
light source and a detector. An EEPROM contained the detailed product information
for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It
complies with the laser class 1 products and EN60825-1.
Table for SFP Products
| Form Factor |
Model Name |
Data Rate
(Gbit/s) |
Reach |
TX |
RX |
Optical Power
(dBm) |
Sensitivity
(dBm) |
Operating Temperature |
| SFP |
SSA-xAC1-x11 |
1.25 |
550m |
850nm
VCSEL |
850nm
PIN |
-3 ~ -9 |
-18 |
CT/IT |
| SFP |
SSR-xAD1-x11 |
1.25 |
2km |
1310nm
FP |
1310nm
PIN |
-1 ~ -9 |
-21 |
CT/IT |
| SFP |
SSR-xAF1-x11 |
1.25 |
10km |
1310nm
FP |
1310nm
PIN |
-3 ~ -9 |
-21 |
CT/IT |
| SFP |
SSR-xAG1-x11 |
1.25 |
20km |
1310nm
FP |
1310nm
PIN |
-2 ~ -8 |
-23 |
CT/IT |
| SFP |
SSB-xAJ1-x11 |
1.25 |
40km |
1310nm
DFB |
1310nm
PIN |
+2 ~ -3 |
-23 |
CT/IT |
| SFP |
SSD-xAL1-x11 |
1.25 |
60km |
1550nm
DFB |
1550nm
PIN |
+2 ~ -3 |
-24 |
CT/IT |
| SFP |
SSD-xAP1-x11 |
1.25 |
80km |
1550nm
DFB |
1550nm
PIN |
+5 ~ 0 |
-24 |
CT/IT |
| SFP |
SSA-xGB1-x11 |
2.125 |
300m |
850nm
VCSEL |
850nm
PIN |
-3 ~ -9 |
-15 |
CT/IT |
| SFP |
SSR-xBD1-x11 |
2.5 |
2km |
1310nm
FP |
1310nm
PIN |
-3 ~ -9 |
-18 |
CT/IT |
| SFP |
SSB-xBV1-x11 |
2.5 |
15km |
1310nm
DFB |
1310nm
PIN |
0 ~ -5 |
-20 |
CT/IT |
| SFP |
SSD-xBJ1-x11 |
2.5 |
40km |
1550nm
DFB |
1550nm
PIN |
0 ~ -5 |
-20 |
CT/IT |
| SFP |
SSQ-xBP1-x11 |
2.5 |
80km |
1550nm
DFB |
1550nm
PIN |
+3 ~ -2 |
-27 |
CT/IT |
| SFP |
SSx-xxxx-xxx |
CT: 0~70°C, IT: -40~+85°C
Customized for Requirement ( ex : Data Rate / Distance / Wavelength / Extra Function ) |
